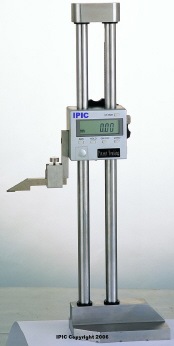

IPIC Twin Beam Height Gage

> 0-12" / 0-300mm (showing)
> 0-20" / 0-500mm
> 0-24" / 0-600mm
> 0.0005" / 0.01mm
> High respond speed: 3 meter per second
> High accuracy
> Good repeatablity
> Smooth movement
> High impact aircraft aluminum case
> Linear moving sensor
> Direct RS232 output

_____________________________________________________________________________________________________

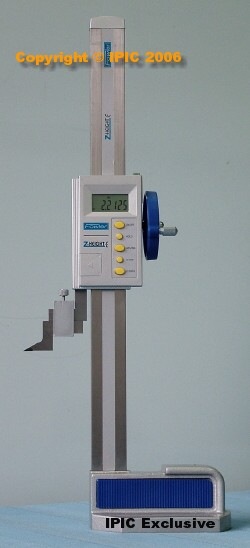

                 IPIC Single Beam Height Gage

                 > 0-12" / 0-300mm (showing)
                 > 0-20" / 0-500mm
                 > 0-24" / 0-600mm
                 > 0.0005" / 0.01mm
                 > High respond speed: 3 meter per second
                 > High accuracy
                 > Good repeatablity
                 > Smooth movement
                 > Easy to operate
                 > Direct RS 232 output
                 > High impacet aircraft aluminum case



















Copyright © IPIC 2007

_____________________________________________________________________________________________________

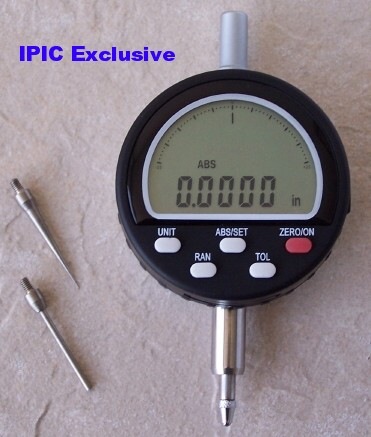

IPIC Exclusive Electronic Indicator

> Direct Inch/Metric Conversion
> Measure Range:
  0-0.25" / 0-6.25mm
  0-0.5 / 0-12mm
  0-1" / 0-25mm
> Resolution:
  0.0005" / 0.01mm
  0.0005" / 0.002mm
> Tolerance Indicators
> Min/Max Measurement
> Floating zero
> Carbide tipped point
> Extra points:
  1) 0.78" dia x1" long
  2) needle point x1" long

_____________________________________________________________________________________________________

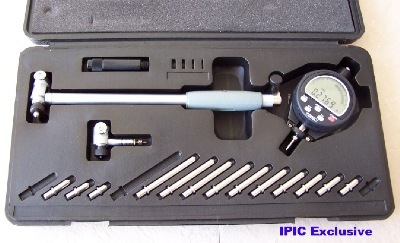

Electronic Bore Gage Set

> Range: 1.4"-6" / 35-150mm
> Resolution: 0.00005" / 0.02mm
> Carbide anviles
> Easily adjustable
> Self Centering
> Includes extension holder
> Heavy Duty case

_____________________________________________________________________________________________________

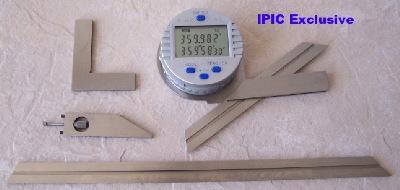

Electronic Universal Protractor
with 6" & 12" Blades

> Hardened stainless steel
> Range: 1x360°, 2x180°,4x90°
> Dual reading LCD display
   are mintes/decimal degrees
> Preset function
> 6" & 12" blades and acute
   angle attachment included
> Fine adjustment
> RS232 data output

_____________________________________________________________________________________________________

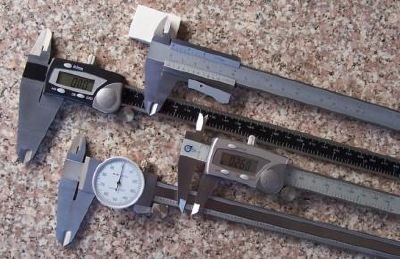

IPIC  Electronic Caliper &IP54 Calipers

> Measure range:
  *0-4" / 0-100mm
  *0-6" / 0-150mm
  *0-8" / 0-200mm
  *0-12" / 0-300mm
  *0-24" / 0-600mm
  *0-48" / 0-1200mm
> Dust resistant
> Resolution 0.0005" / 0.01mm
> Accuracy 0.001" / 0.02mm (per 6" or 150mm)
> ITO Glass sensor
> High respond speed: 3 meters per second.
> Direct RS232 output

_____________________________________________________________________________________________________

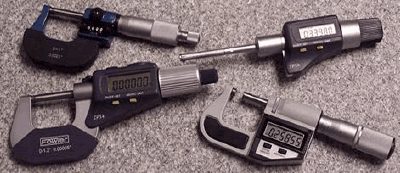

IPIC Micrometers

> Outside / Digital / Electronic / IP54&65
> Inch /Metric
> All sizes
> 0-3" sets / 0-6" sets / 0-12" sets
> Digital & Electronic Micrometer heads
> All speicality micrometers
